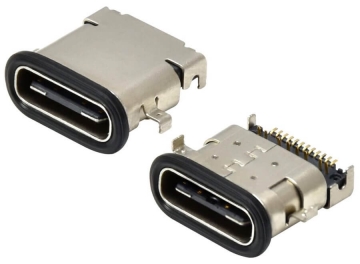

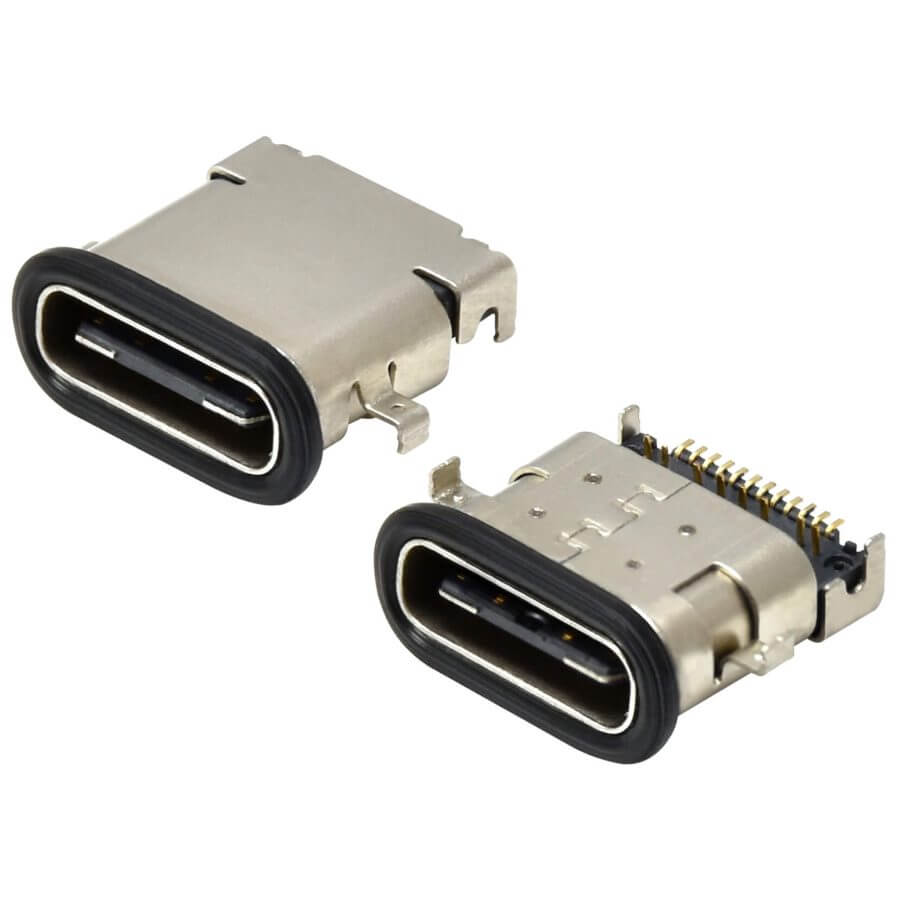

Receptacle, Hybrid, Waterproof, CH:0.3mm

1.MATERIAL:SEE”TABLE1″
2.FINISH:SEE”TABLE1″
3.ELECTRICAL:
3.1.CONTACT CURRENT RATING:
5A(VBUS PIN 1.5A/PIN)
5A(GND PIN 1.25 A/PIN MAX),0.25A/PIN(OTHER PIN)
3.2.INSULATION RESISTANCE:
100MEGAOHMS MIN.AT 250VDC
3.3.DIEELECTRIC WITHSTANDING VOLTAGE:
1000VAC MIN
3.4.LOW LEVEL CONTACT RESISTANCE:
INITIAL 40mΩMAX
AFTER 50mΩMAX
3.5.Voltage Rating:20V MAX.
4.MECHANICAL CHARACTERISTICS:
4.1.MATING FORCE:5~20N.
4.2.UNMATING FORCE:8~20N(INITIAL),6~20N(AFTER 10000CYCLES);
4.3.DURABILITY:10,000 MATING CYCLES
4.4.OPERATING TEMPERATURE:-40°C TO+85°C
4.5.SALT SPRAY TEST:48H MIN.(NO OXIDATION OR RUST)
