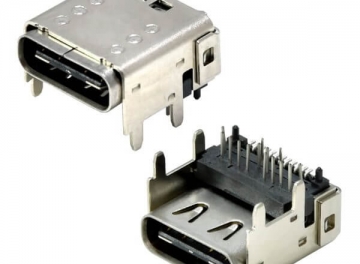

USB4 Gen3x2 Receptacle Hybrid CH:3.4mm

1.INSULATOR:THERMOPLASTIC,RATED UL94V-0
2.CONTACT:COPPER ALLOY
UNDERPLATE:50u〞~80u〞NI
CONTACT AREA:30u〞AU
SOLDER TAILS AREA:100u〞~150u〞SN(MATTE)
3.SHELL:STAINLESS STEEL,NI-PLATED
ELECTRICAL CHARACTERISTIC
1.OPERATION VOLTAGE:20V
2.CURRENT RATING:7 A MAX
3.CONTACT RESISTANCE:40mΩINITIAL
4.INSULATION RESISTANCE:100MΩMIN.@100VDC
5.DIELECTRIC WITHSTANDING VOLTAGE:100VAC/MIN
MECHANICAL CHARACTERISTIC
1.MATING CYCLES:10000 INSERTIONS
ENVIRONMENT
1.TEMPERATURE RANGE:-20°C TO+105°C

PACKING STYLE
1.TYPE REEL

NOTE
CONNECTOR IS FULLY COMPATIBILE WITH USB TYPE C4.0
CONNECTOR SPEC
