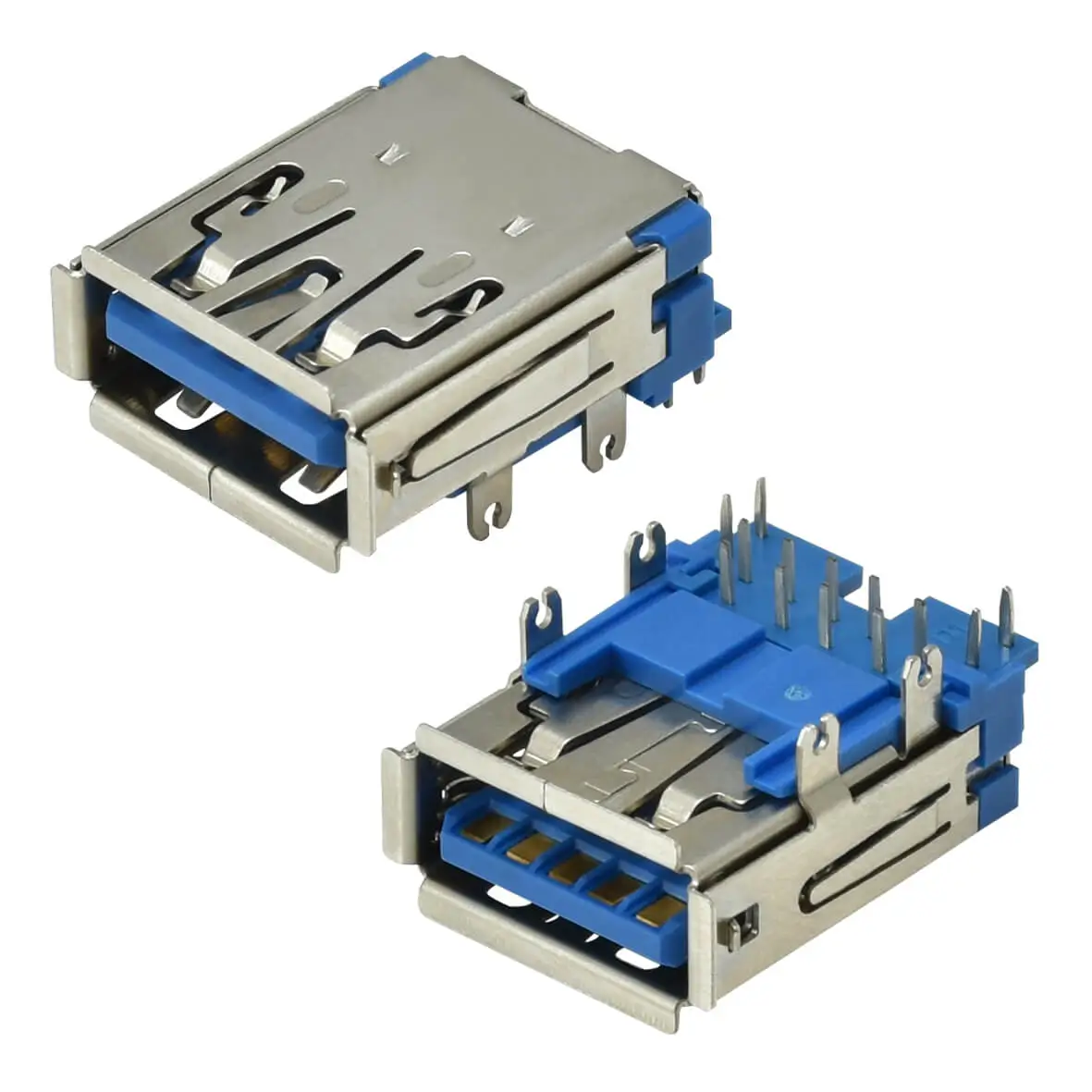

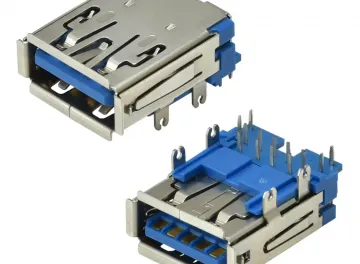

377AD09KZTF1P1A2

Specification

MATERIAL

Insulator: Thermoplastic, rated UL94-0
Contacts: Copper Alloy
Shell: Steel

CONTACT PLATING

Underplate: 80u” Nickel
Contact Area: 30u”Pd-Ni+2u”Gold
Solder Tail Area: 100u”~200u”Tin (Lead Free)

ELECTRICAL

Current Rating: 4 Amps max.
Current Voltage: 20V
Contact resistance:30 mΩ (Max) initial for Vbus and GND contacts. 50 mΩ (Max) initial for all other contacts.
Insulation resistance: 100 Mohms min @ 100 DAC
Dielectric withstanding voltage: 100 VAC / minute
Temperature range: -25°C TO +105°C
Mating Cycle: 5000
