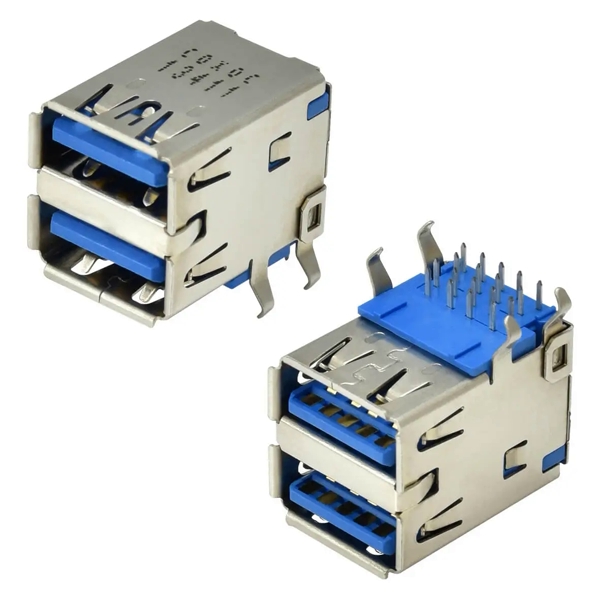

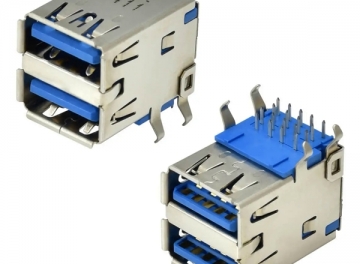

53113060010

Specification MATERIAL AND FINISH

1.INSULATOR:THERMAL PLASTIC UL94HB,BLUE(PANTONE 300C)

2.CONTACTS:COPPER ALLOY PLATING:UNDERPLATE:50u”~100u”NI CONTACT AREA:30u”Pd-NI+2u”AUor 15u”Pd-NI+1u”AU or 30u AU

3.SHELL:COPPER ALLOY OR STEEL,NI PLATED ELECTRICAL CHARACTERISTIC 1.CURRENT RATING:1.8A(MAX)SHALL BE APPLIED TO VBUS PIN AND ITS CORRESPONDING GND PIN 0.25A(MIN)SHALL BE APPLIED TO ALL THE OTHER CONTACTS 2.CONTACT RESISTANCE:30mΩ(MAX)INTIAL FOR VBUS AND GND CONTACTS 50mΩ(MAX)INTIAL FOR ALLO OTHER CONTACTS 3.INSULATION RESISTANCE:100MΩMIN@250VDC

4.DIELECTRIC WITHSTANDING VOLTAG:100VAC/MINUTE 5.MATING CYCLES:5,000 INSERTIONS ENVIRONMENT 1.OPERTING TEMPERATURE RANGE:-40°CTO_85°C PACKING STYLAE 1.TRAY
