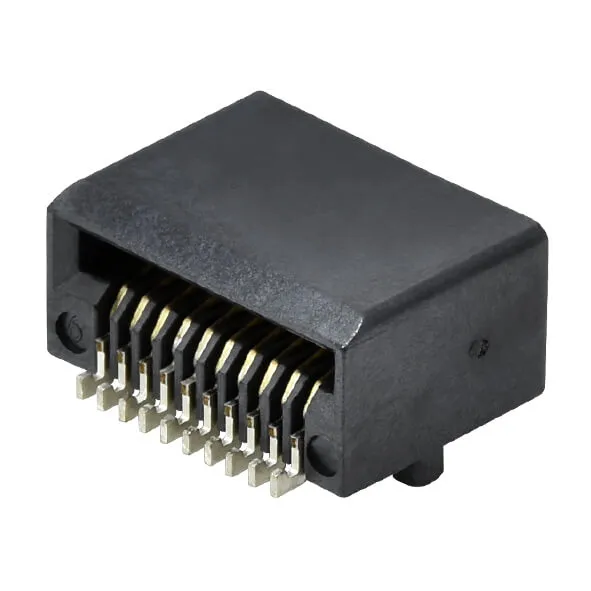

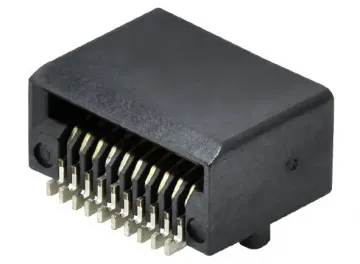

SFP+ 28G Connector, 20Pin, SMT, Tape Reel, Black
SFP+ 28G Connector, 20Pin, SMT, Tape Reel, Black
Feature
Specification
MATERIAL
INSULATOR: THERMOPLASTIC, RATED UL94V-0
UPPER CONTACT: COPPER ALLOY
LOWER COVER: COPPER ALLOY
CONTACT PLATING
UNDERPLATE: 50u”~100u” NI
CONTACT AREA: SELECTIVE GOLD
SOLDER TAILS AREA: 100u”~200u” SN MATTE (LEAD FREE)
ELECTRICAL
CURRENT RATING: 0.5 A PER CONTACT
RATED VOLTAGE: 30 VDC PER CONTACT
INSULATION RESLSTANCE: 1000 MΩ MIN
DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC FOR 1 MINUTE
STORAGE TEMPERATURE: -20°C TO +85°C
MATERIAL
INSULATOR: THERMOPLASTIC, RATED UL94V-0
UPPER CONTACT: COPPER ALLOY
LOWER COVER: COPPER ALLOY
CONTACT PLATING
UNDERPLATE: 50u”~100u” NI
CONTACT AREA: SELECTIVE GOLD
SOLDER TAILS AREA: 100u”~200u” SN MATTE (LEAD FREE)
ELECTRICAL
CURRENT RATING: 0.5 A PER CONTACT
RATED VOLTAGE: 30 VDC PER CONTACT
INSULATION RESLSTANCE: 1000 MΩ MIN
DIELECTRIC WITHSTANDING VOLTAGE: 300 VDC FOR 1 MINUTE
STORAGE TEMPERATURE: -20°C TO +85°C
