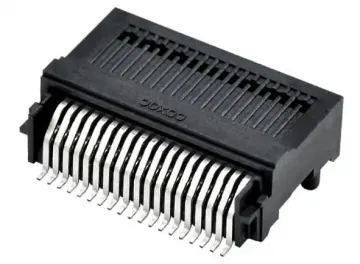

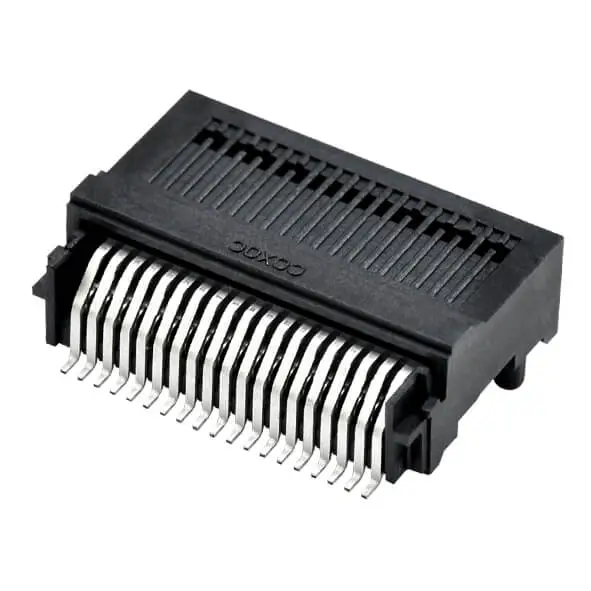

38Pin, SMT, Tape Reel, Black

Specification
MATERIAL AND FINISH
1.INSULATOR:THERMOPLASTIC,RATED UL94V-0
2.CONTACT:COPPER ALLOY
PLATING:
UNDERPLATE:50u”~100u”NI
CONTACT AREA:SELECTIVE AU
SOLDER TAILS AREA:100u”~200u”SN(MATTE)
3.COVER:THERMOPLASTIC,RATED UL94V-0

ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:0.5 A PER CONTACT
2.RATED VOLTAGE:30 VDC PER CONTACT
3.INSULATION RESISTANCE:1000 MΩ MIN
4.DIELECTRIC WITHSTANDING VOLTAGE:300 VDC FOR 1 MINUTE

ENVIRONMENTAL
1.STORAGE TEMPERATURE:-40°C TO +85°C
