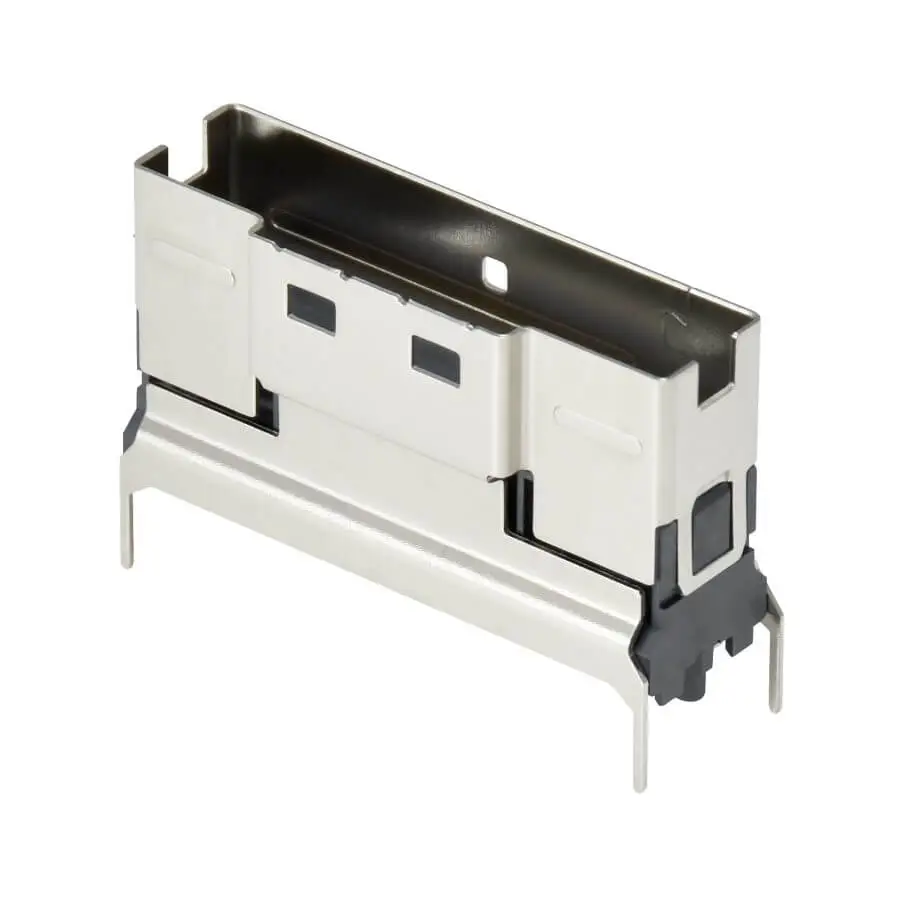

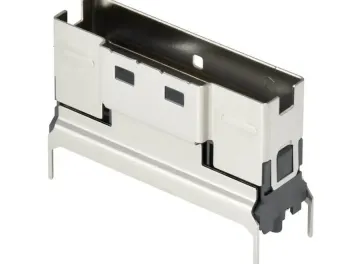

SlimSAS 8i 74P SMT Vertical Connector

Specification
MATERIAL AND FINISH
1.INSULATER:HIGH TEMPERATURE THERMOPLASTIC UL94V-0
2.CONTACT:COPPER ALLOY
AU PLATED OVER NI PLATED ON MATING AREA
MATTE SN PLATED OVER NI ON SOLDER AREA
3.LATCH:STAINLESS STEEL
NI PLATED OVERALL

ELECTRICAL CHARACTERISTIC
1.CONTACT RESISTANCE:20mΩ MAX
2.INSULATION RESISTANCE:1000MΩ MIN.AT 100 V DC FOR 60 S
3.WITHSTANDING VOLTAGE:300V MIN.DC FOR 60 S
4.VOTAGE RATING:30V AC
5.CURRENT RATING:0.5 A PER PIN

MECHANICAL CHARACTERISTIC
1.LACTH RETENTION FORCE:50 N MIN
2.MATING FORCE:40 N MAX
3.UNMATING FORCE:3 N MIN
4.DURABILITY:250 CYCLES

ENVIRONMENT
1.OPERATING TEMPERATURE:-40°C~+85°C
2.TEMPERTURE RISE:30°C MAX

NOTE
1.THE PRODUCT USING MATERIAL AND PROCESSING MUST CONFORM TO
THE “WI-PZ-142″HSF TECHNICAL STANDARD CONTROL REQUIREMENTS
