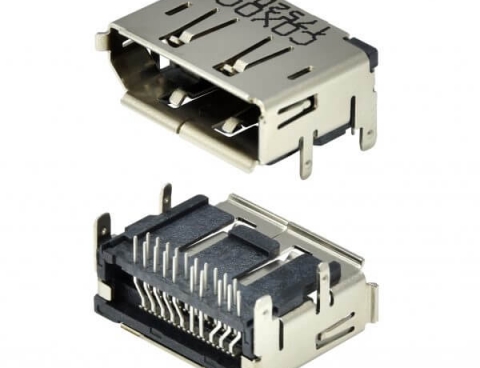

Female,DIP+SMT,1u” Gold,Off-Set 4.2mm,Black 909JH20FSTC4N5C3

Specification

MATERIAL
Insulator: Thermal Plastic, Rated UL94V-0
Contacts: Copper Alloy
Shell: Steel

CONTACT PLATING
Underplate: 50u”~150u” Nickel
Contact area: 1u”~30u” Selective Gold
Solder tails area: 100u”~200u” Matte Tin(Lead Free)

ELECTRICAL
Operation voltage: 40V
Current rating: 0.5A min.
Contact resistance: 30mohms, Shell: 50mohms
Insulation resistance: 100Mohms @ 500VDC
Mated: 10Mohms @ 150VDC
Dielectric withstanding voltage: 500V AC/Minute
Temperature range: -20°C to +85°C
Mating Cycles: 10000 insertions
