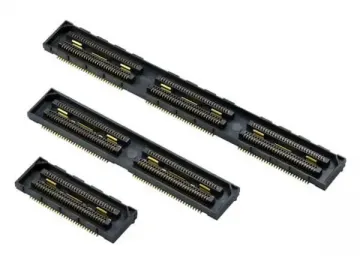

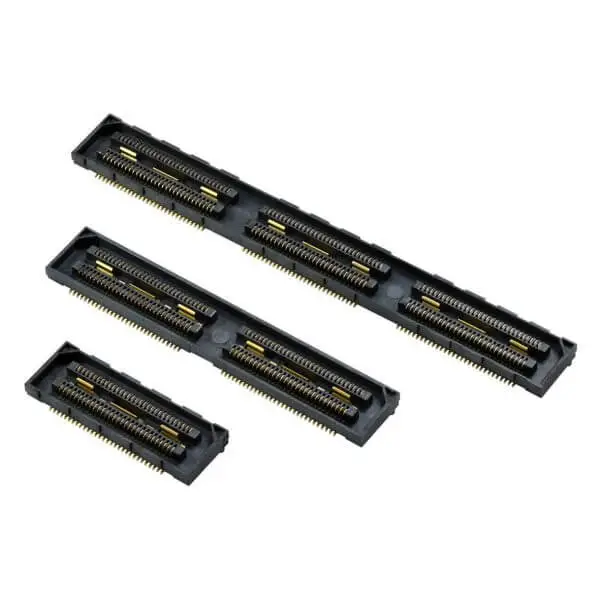

60~180Pin, SMT, Female, 0.5mm Pitch
60~180Pin, SMT, Female, 0.5mm Pitch
产品特性
Specification
MATERIAL AND FINISH
1.INSULATOR:LCP,RATED UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDERPLATE:50~120u”NI
CONTACT AREA:8u”AU
SOLDER TAILS AREA:1u”AU
ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:CONTACT:2.0A
GROUND PLANE:7.8 A
2.VOLTAGE RATING:175 VAC(5mm STACK HEIGHT)
3.WITHSTANDING VOLTAGE:525 VAC
MECHANICAL CHARACTERISTIC
1.MATING CYCLES:100 INSERTIONS
ENVIRONMENT
1.OPERATING TEMP RANGE:-55°C TO +125°C
MATERIAL AND FINISH
1.INSULATOR:LCP,RATED UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDERPLATE:50~120u”NI
CONTACT AREA:8u”AU
SOLDER TAILS AREA:1u”AU
ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:CONTACT:2.0A
GROUND PLANE:7.8 A
2.VOLTAGE RATING:175 VAC(5mm STACK HEIGHT)
3.WITHSTANDING VOLTAGE:525 VAC
MECHANICAL CHARACTERISTIC
1.MATING CYCLES:100 INSERTIONS
ENVIRONMENT
1.OPERATING TEMP RANGE:-55°C TO +125°C
