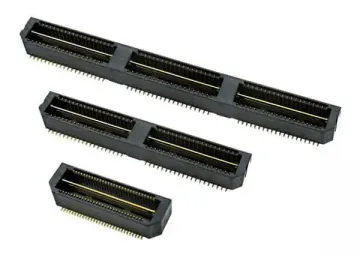

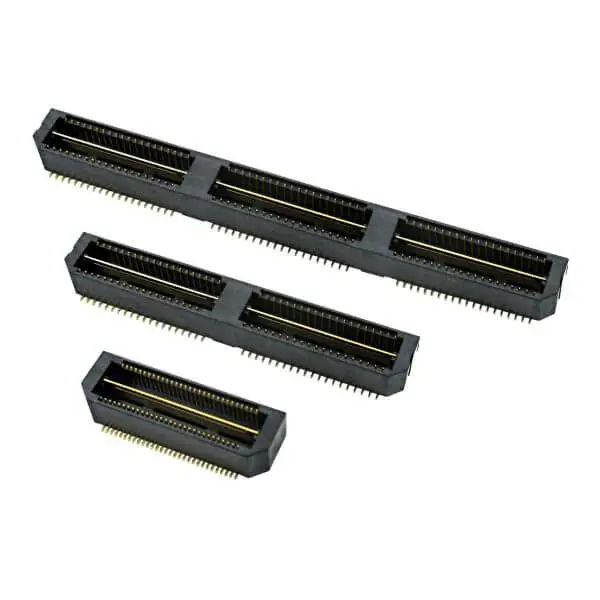

10~120Pin, SMT, Male, 0.8mm Pitch
10~120Pin, SMT, Male, 0.8mm Pitch
产品特性
Specification
MATERIAL AND FINISH
1.INSULATOR:LCP E6808,RATED UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDERPLATE:50~120u”NI
CONTACT AREA:1~8u”AU
SOLDER TAILS AREA:1u”AU
ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:CONTACT:2.0A
GROUND PLANE:7.8A
2.VOLTAGE RATING:225 VAC(5mm STACK HEIGHT)
3.WITHSTANDING VOLTAGE:675 VAC
MECHANICAL CHARACTERISTIC
1.MATING CYCLES:100 INDERTIONS
ENVIRONMENT
1.OPERATING TEMP RANGE:-55°C TO +125°C
MATERIAL AND FINISH
1.INSULATOR:LCP E6808,RATED UL94V-0,BLACK
2.CONTACTS:COPPER ALLOY
PLATING:UNDERPLATE:50~120u”NI
CONTACT AREA:1~8u”AU
SOLDER TAILS AREA:1u”AU
ELECTRICAL CHARACTERISTIC
1.CURRENT RATING:CONTACT:2.0A
GROUND PLANE:7.8A
2.VOLTAGE RATING:225 VAC(5mm STACK HEIGHT)
3.WITHSTANDING VOLTAGE:675 VAC
MECHANICAL CHARACTERISTIC
1.MATING CYCLES:100 INDERTIONS
ENVIRONMENT
1.OPERATING TEMP RANGE:-55°C TO +125°C
